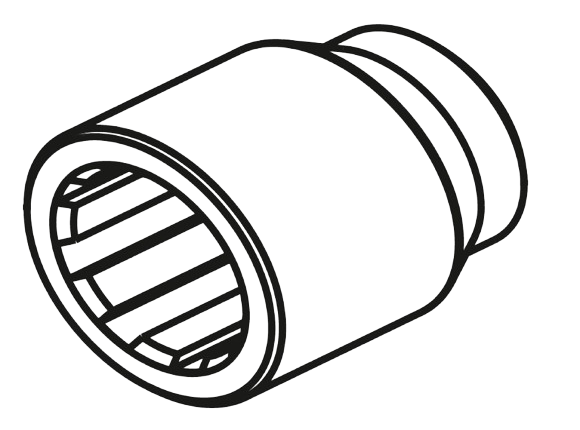

6x8 ELEMENT PUMP COUPLING

(HIGH TORQUE TRANSMISSION – FLEXIBLE CONNECTION – VIBRATION DAMPING STRUCTURE)

The 6x8 element pump coupling is designed to provide a flexible and secure connection between the hydraulic pump and the PTO or engine output. Thanks to the elastomer elements of the coupling, it dampens vibrations and ensures quieter and longer-lasting system operation. The 6x8 configuration consists of 6 inner connection teeth and 8 outer connection elements; this structure provides high torque transmission and axial misalignment tolerance. It is generally used in tipper trucks, vacuum trucks, sweeper vehicles, and stationary hydraulic systems.

Technical Specifications

Coupling type: Flexible pump coupling with elastomer element
Configuration: 6x8 element structure
Input connection: PTO output (splined shaft / ISO flange)
Output connection: Pump shaft (Ø25–Ø40 mm range)
Body material: Aluminum or cast body
Elastomer material: Polyurethane / NBR (vibration damping)
Maximum torque capacity: 300–600 Nm
Maximum speed: 3000 rpm
Axial misalignment tolerance: ±1.5 mm
Radial misalignment tolerance: ±0.5 mm
Mounting type: Bolted / flanged / clamped
Standards: Compatible with ISO 7653 / DIN 740

Advantages

High torque transmission and vibration damping feature
Flexible and secure connection between pump and PTO
Tolerates axial and radial misalignments
Quiet operation and long-lasting elastomer structure
Wide range of applications in mobile and stationary systems
Fully compatible with DIN and ISO connection standards
Easy installation and maintenance-friendly design
Ideal solution for tipper, sweeper, and vacuum truck applications
Replaceable elastomer elements provide easy serviceability
